Ulanzi D200X All-in-One Creative Deck
The Ulanzi D200X All-in-One Creative Deck is a programmable control panel and docking station in one, built for photographers, video editors, streamers, and gamers. The deck combines 14 customisable LCD keys, three tactile encoder knobs and two customisable buttons with an 8-in-1 hub that brings HDMI 4K, USB 3.2 Gen 2, card readers and PD power into a single device.
Highlights
- 14 customisable LCD keys and 3 tactile encoder knobs
- 8-in-1 docking station with HDMI 4K @ 60Hz, SD and TF card readers
- PD 3.0 input up to 100W and output up to 85W for laptop charging
- USB 3.2 Gen 2 (10Gbps) on USB-A and USB-C host
- 5.5-inch display with 960 x 540 resolution
- Suited to video editing, streaming, gaming, photo editing and smart home control

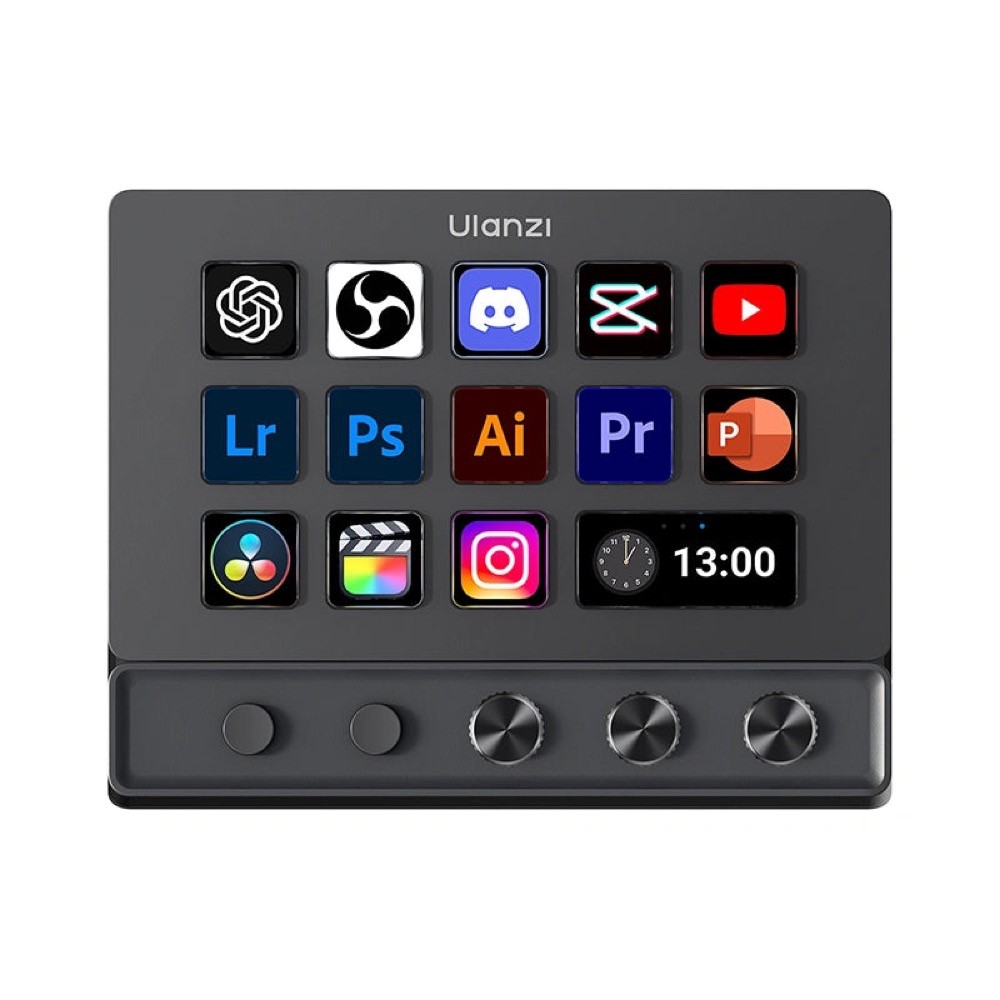

Control panel
The D200X has a 5.5-inch display, 14 customisable LCD keys, three customisable encoder knobs with rotate and press actions, and two customisable buttons. Frequent shortcuts and adjustments that are normally driven by key combinations can be mapped to keys or knobs. The three encoder knobs support clockwise and counter-clockwise rotation and a press action for additional functions.

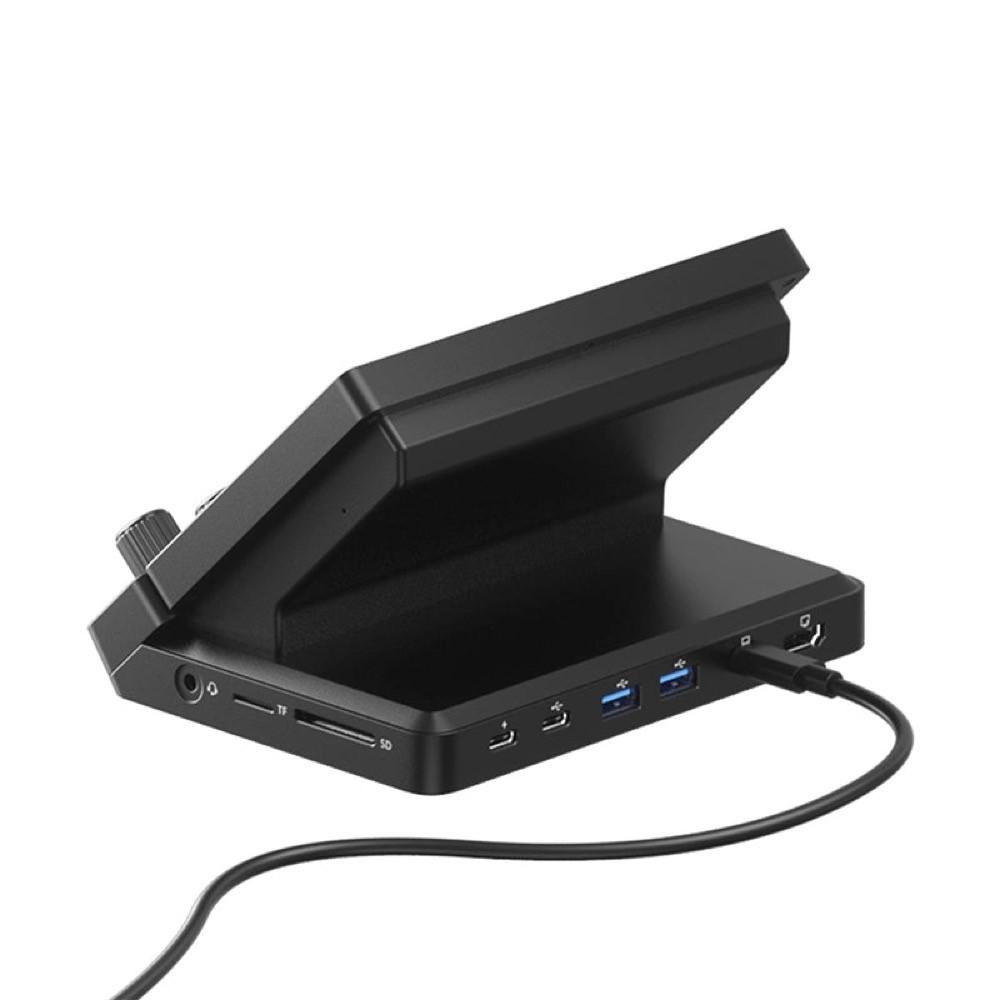

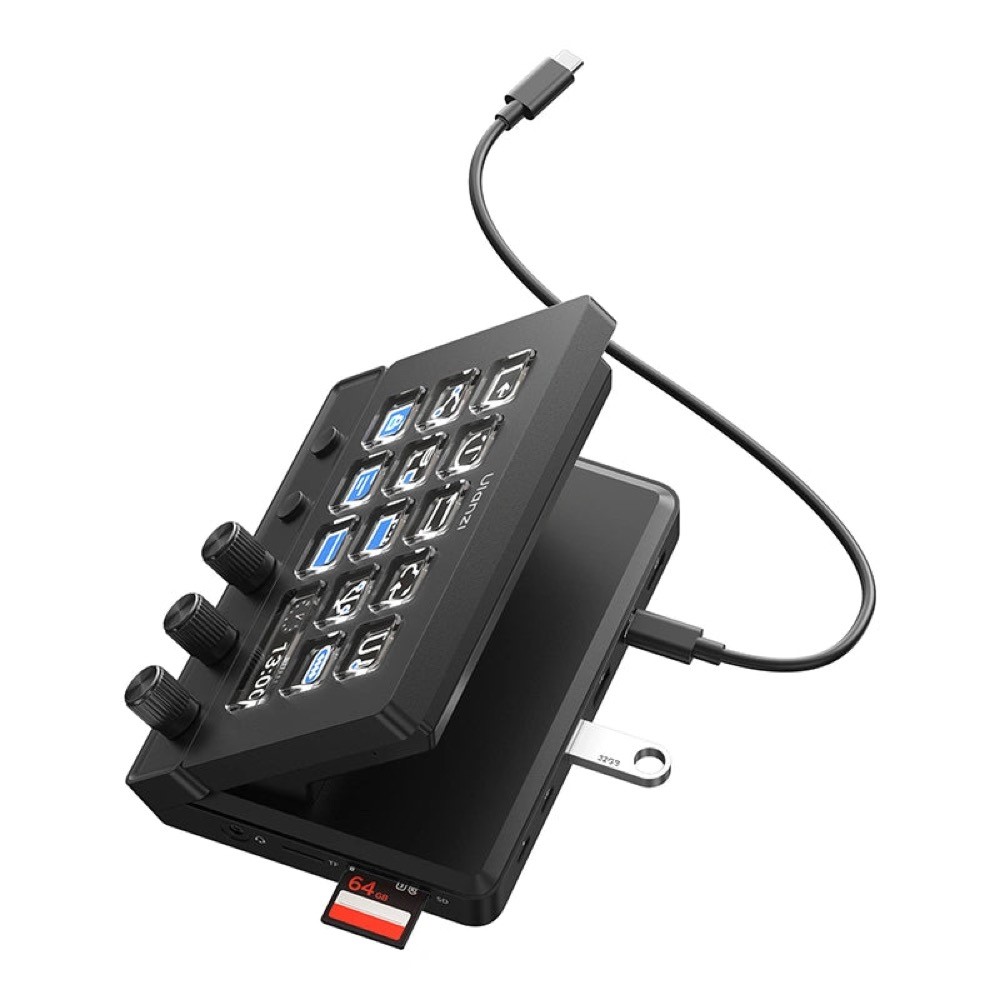

8-in-1 docking station

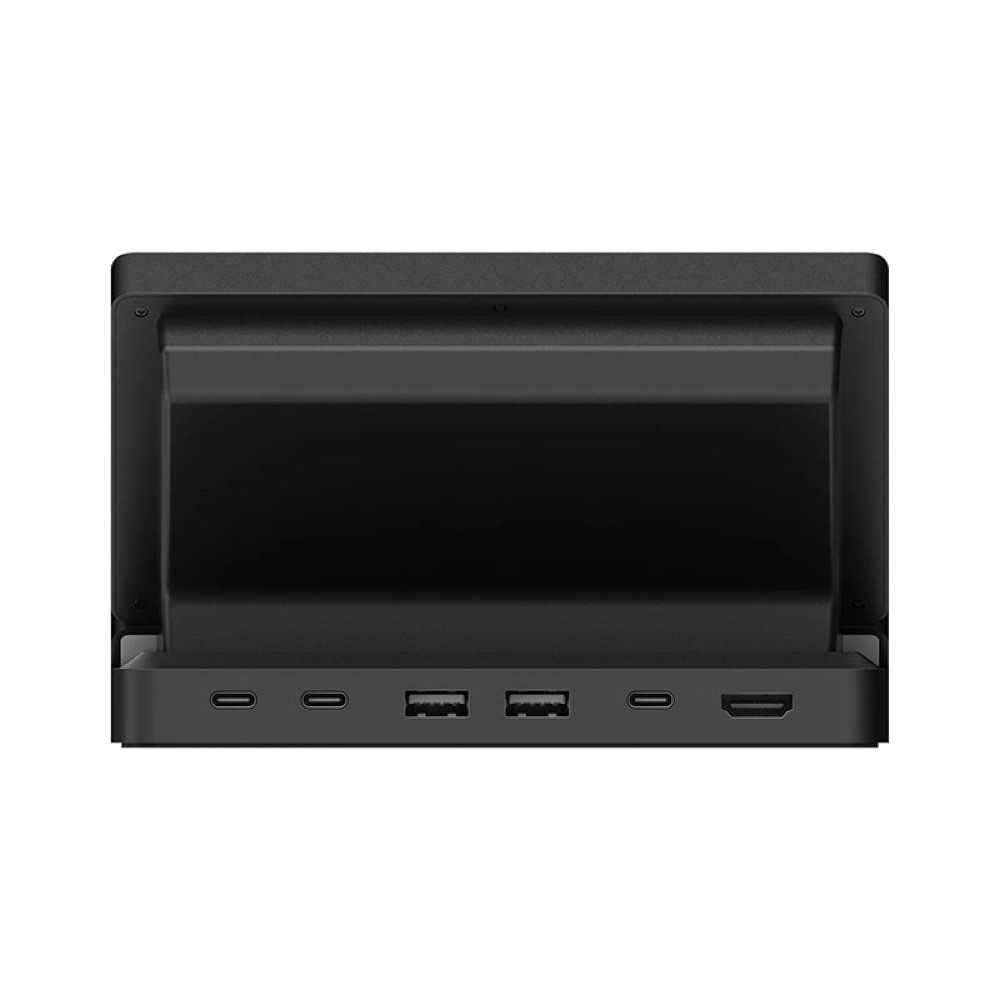

The built-in hub replaces several separate adapters and includes an HDMI output up to 4096 x 2160 at 60Hz (HDCP 1.4/2.2), USB 3.2 Gen 2 on both USB-A and USB-C host, a Type-C port for data and charging up to 85W (PD 3.0), a Type-C PD input up to 100W (PD 3.0), an SD 3.0 card slot, a TF 3.0 card slot and a 3.5mm audio jack for both headphones and microphone.

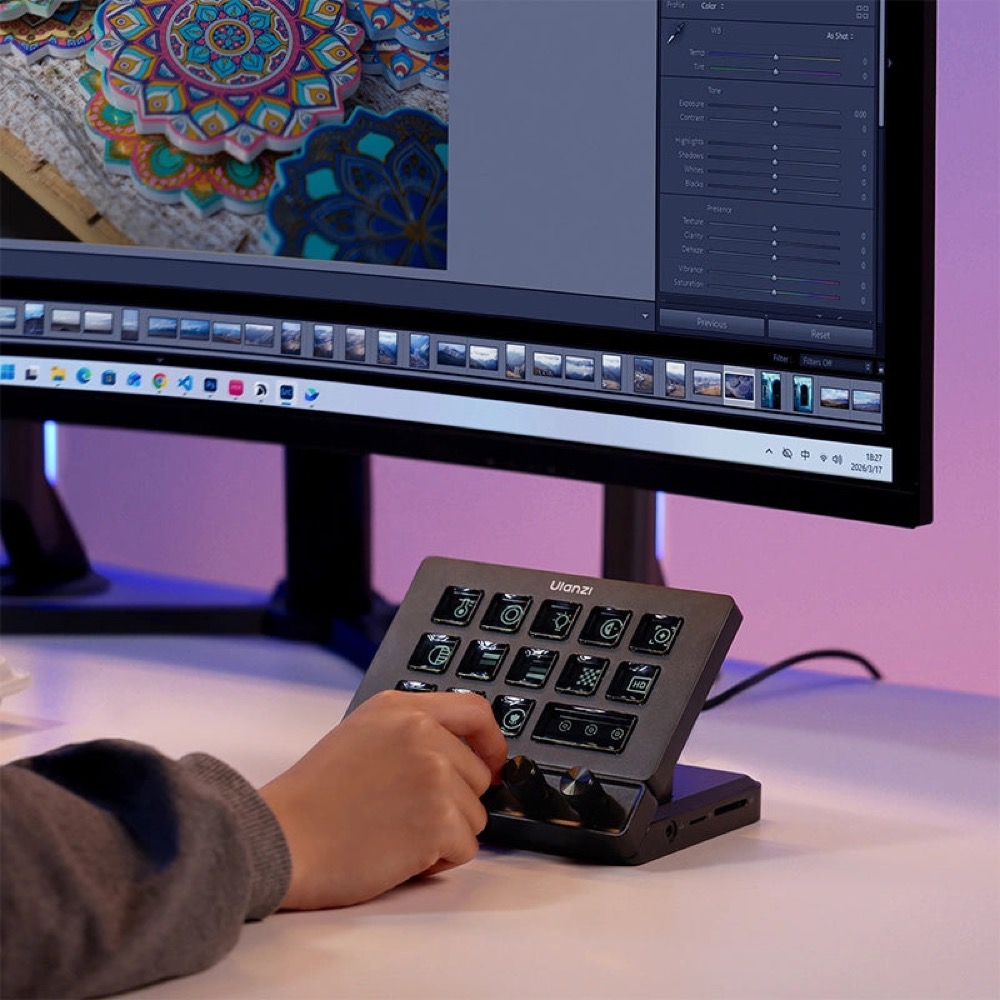

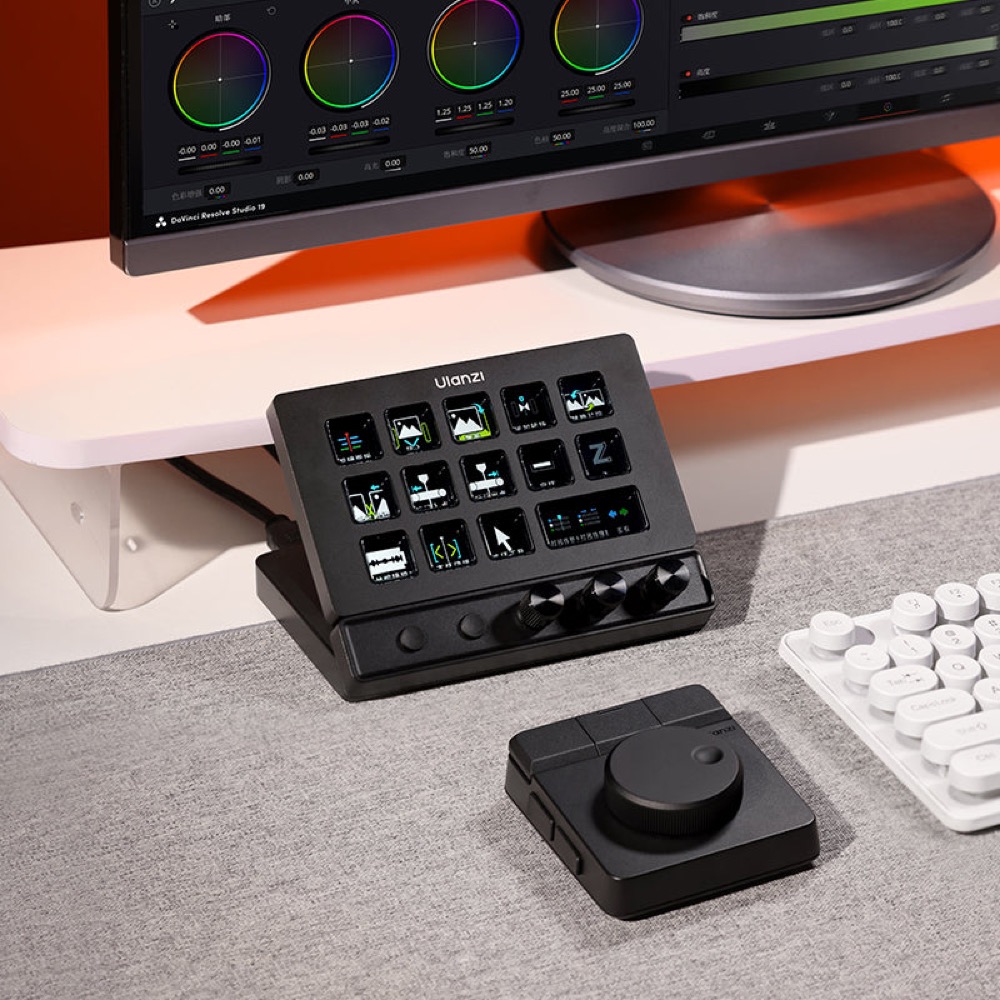

WorkflowsThe D200X suits a wide range of workflows: scrubbing through timelines and adjusting colour grades during video editing, switching scenes and sources during streaming, triggering macros and adjusting game volume during gaming, and shortcuts for photo editing. Lighting can also be controlled directly from the deck for ambient and studio setups.
Lighting and ecosystemThrough the Ulanzi Connect app, the D200X can switch scenes, adjust brightness, colour temperature and lighting effects across multiple lighting systems. Compatible products include the Ulanzi K6500, VL-200Bi, VL-120C, VL-120Bi, EC65, AL60 and AL120, as well as Philips Hue (Bluetooth control required), Nanoleaf and Govee.
Software and compatibility
The Ulanzi Studio software provides drag-and-drop plugins, presets and ongoing updates for creation and post-production tools. The system works with Windows 10 or later and macOS Monterey 12.0 or later.
Facts
- Brand: Ulanzi
- Model: D200X
- Material: ABS and PC, aluminium alloy faceplate, acrylic keys, anti-slip silicone pads
- Dimensions: 153 x 113.5 x 98 mm (6.02 x 4.47 x 3.86 inch)
- Net weight: approx. 480 g (16.93 oz)
- Gross weight: approx. 720 g (25.4 oz)
- Power: 10 W (max.)
- Power supply: Type-C port (5 V / 2 A); Type-C PD port, PD 3.0, up to 100 W input
- Display: 5.5 inch, 960 x 540 resolution (RGB layout)
- LCD keys: 14 customisable
- Encoder knobs: 3 customisable, clockwise/counter-clockwise rotation and press
- Buttons: 2 customisable
- TF card slot: TF 3.0
- SD card slot: SD 3.0
- Audio: 3.5 mm jack, headphone output and microphone input
- HDMI: video output up to 4096 x 2160 at 60 Hz, HDCP 1.4/2.2
- Type-C (Host): USB 3.2 Gen 2 (10 Gbps)
- USB-A (Host): USB 3.2 Gen 2 (10 Gbps)
- Type-C (Data/charging): USB 3.2 Gen 2 (10 Gbps), PD 3.0 up to 85 W output (laptop charging supported)
- Type-C (PD): PD 3.0 up to 100 W input
- System compatibility: Windows 10 or later, macOS Monterey 12.0 or later
- Lighting compatibility: Ulanzi K6500, VL-200Bi, VL-120C, VL-120Bi, EC65, AL60, AL120, Philips Hue (Bluetooth control required), Nanoleaf, Govee
- Warranty: 2 years
Supplied accessories
- 1 x D200X
- 1 x data cable
- 1 x user manual
